The SP & SPX Series – The “Standard” for Vacuum Presses

Written by Mark Cowdell

The SP Series and now the deluxe SPX platform have been the flagship vacuum press for Vac-U-Clamp for over 25 years.  Made in the USA, this versatile vacuum press is well suited for any operation where vacuum is needed for laminating/forming and veneering applications.  Designed with production, durability and quality in mind, the SP Series is made from welded steel and aluminum at our factory in San Diego County, California.  Most popular sizes are 5×10 and the 5×12 but larger sizes are available if needed.  Includes oil-cooled vacuum pump, silicone or poly membrane, baltic birch platen & lower shelf, timer, bleed system and vacuum gauge.  Custom sizes are available also.

The SP Series vacuum press is a workhorse & center piece for any pro woodwork shop, school/college, serious privateer or anxious novice; Not to be confused with the cheap DIY or overseas extruded aluminum tables that won’t last.

SP & SPX Series Available Sizes :

  • SP-6400 – 4’ x 6’ – working space 48”x 72” –  $8,995.00
  • SP-8400 – 4’ x 8’ – working space 48”x 96” – $11,995.00
  • SP-10500 – 5’ x 10’ – working space 60”x 120” –  $13,995.00
  • SPX-10500 – 5′ x 10′ – working space 60″ x 120″ – $17,750.00
  • SP-12500 – 5’ x 12’ – working space 60”x 144” – $17,995.00
  • SPX-12500 – 5’ x 12’ – working space 60”x 144” – $20,750.00
  • SP-12600 – 6’ x 12’ – working space 60”x 144” – Call for Price
  • SP-18800 – 8′ x 18′ – working area 8′ x 18′ – Call for Price

Typical SP Series Vacuum Press Configuration w/vacuum pump, timer, bleed valve & gage

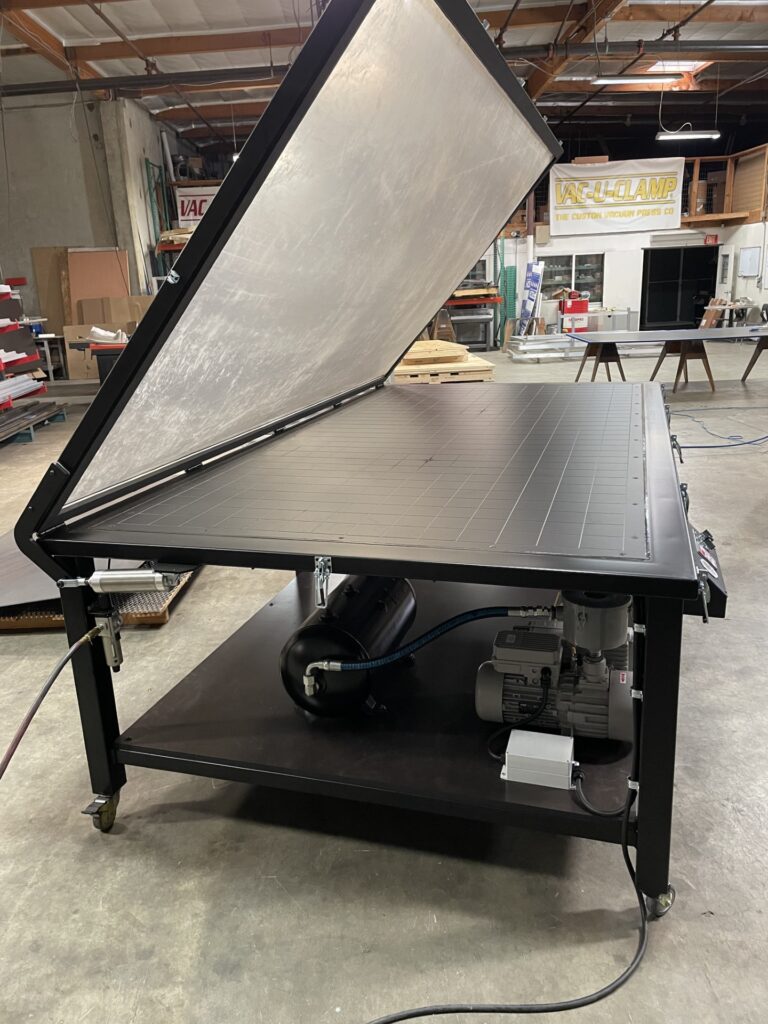

Typical SPX Series Vacuum Press Configuration w/vacuum pump, timer, bleed valve, gage and tank & pneumatic frame lift

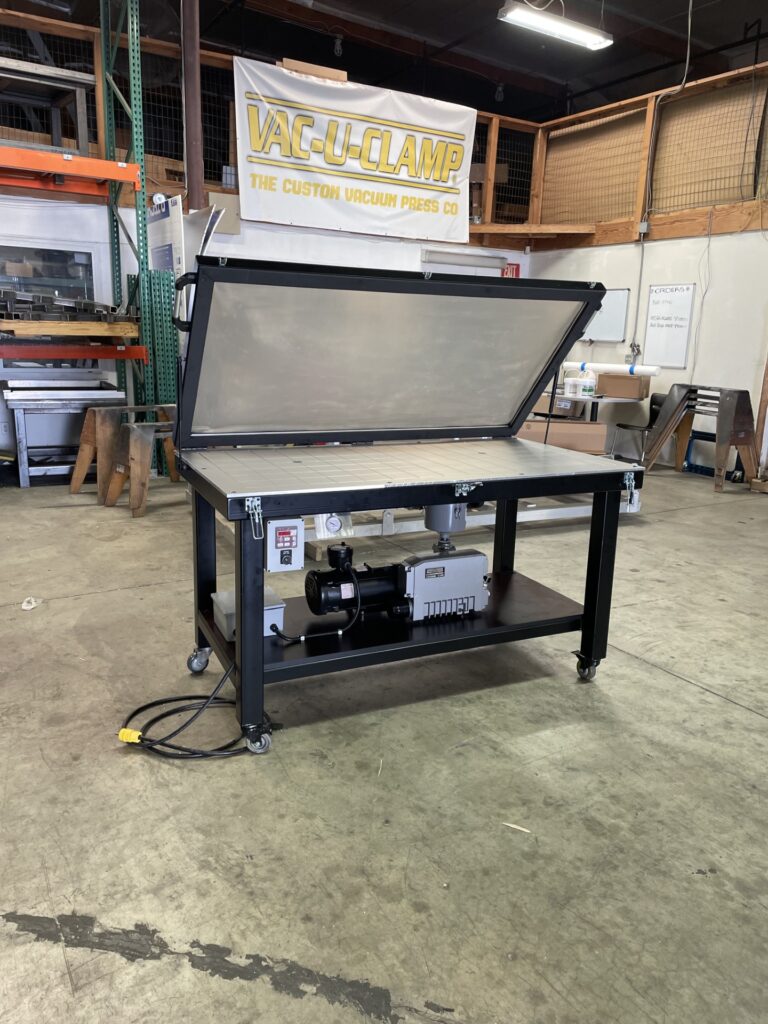

SP-5300 – 3×5 Working Area w/Silicon Membrane & Aluminum Platen

SP-6400 – 4×6 Working Area w/Silicon Membrane & Aluminum Platen



SP-8400 – 4×8 Working Area w/Silicon Membrane & Aluminum Platen

SP-8400 – 4×8 Working Area w/Silicon Membrane

SP-10500 – 5×10 Working Area w/ Polyurethane  Membrane w/6″ built in box

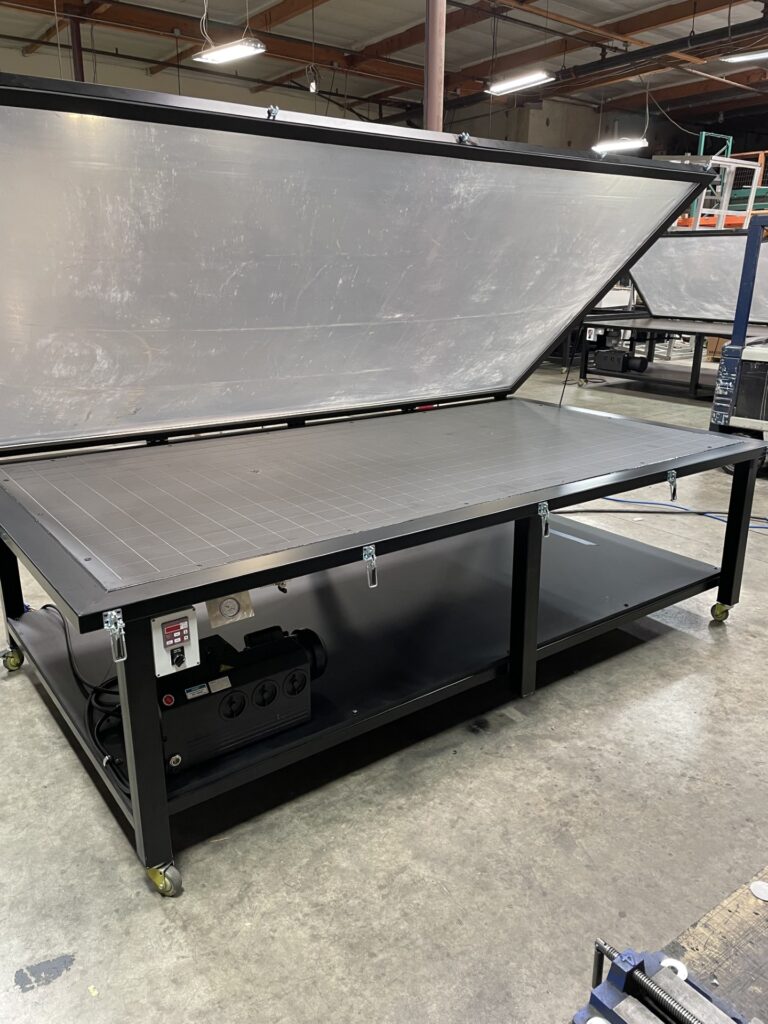

SP-10500 – 5×10 Working Area w/ Silicone Membrane

SP-12500 – 5×12 Working Area w/ Silicon  Membrane

SP-12600 – 6×12 Working Area w/ Aluminum Platen & Silicon  Membrane

Custom sizes are available, like this 8×14 – Call us to get your order started.

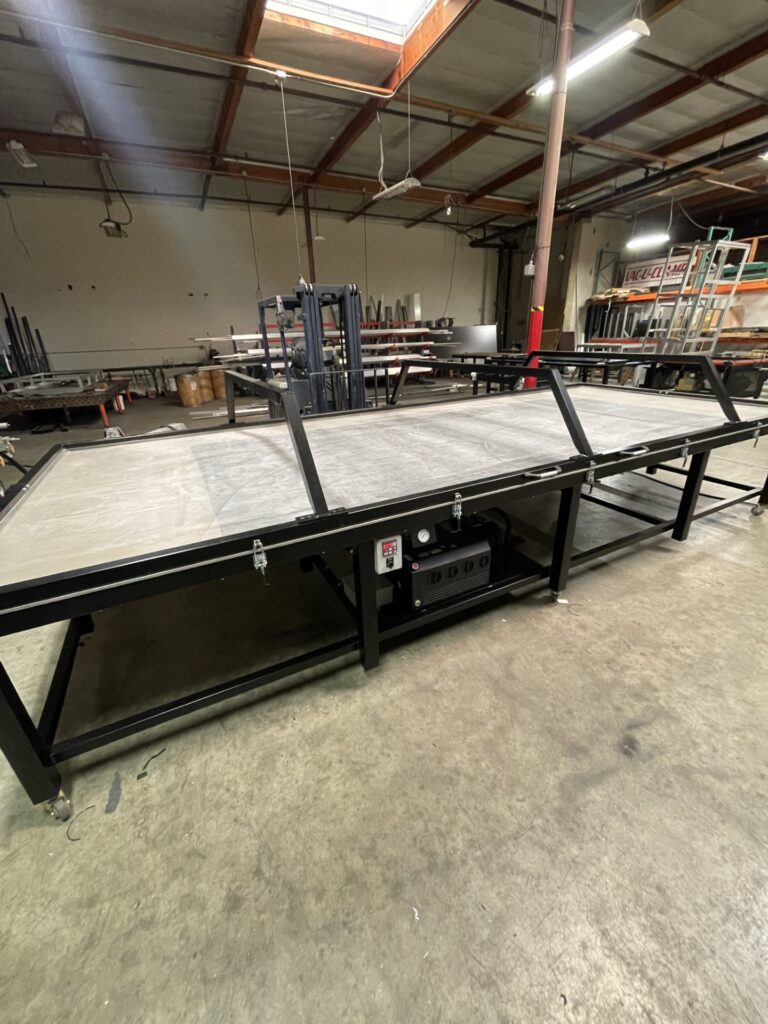

SP-18800 – 8×18 Working Area w/ Aluminum Platen & Silicon  Membrane

SP10500 Heavy Duty – Built for 1500 lb. Capacity.











SP Series Vacuum Presses – Our Work, Your Solution

  • Platens – made of 3/4” laminated and edge banded.
  • Heavy duty aluminum frame – welded, powder coated, strong & sexy.
  • 2 mm Silicone membrane – built to last.
  • Membrane Frame – air assisted lifting springs for ease of operation.
  • 120 or 220 VAC Oil cooled rotary vane vacuum pumps – producing -29″ Hg near absolute vacuum.
  • Casters or levelers
  • Lower shelf
  • Auxiliary vacuum port
  • Plug & Play – shipped completely set up and ready to work,  No assembly required.
